 Model

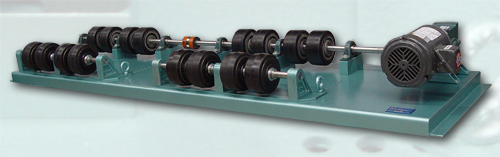

745 Adjustable Drum Rollers
These units
save time, labor and money in applications where mixing is performed by
rolling the container. Fully adjustable to roll any round container from
a 5-gallon pail to a 55-gallon drum.
Features:
-
Heavy-duty
6" diameter Neoprene wheels, eight under each drum, can be moved
to clear hoops and bungs permitting unlimited latitude in type of
container rolled.
-
Neoprene
wheels bleed the static electricity generated by drum rotation.
-
Smooth
running ball bearing pillow blocks and solid welded steel basis for
heavy-duty service.
-
Constant
speed drive: 144 RPM which rotates 55-gallon drum at 37
RPM. Note: To compute revolving speed of other containers, multiply
diameter of wheels by RPM of wheels and divide by diameter of container.
-
V-belt
and expandable pulley-type variable speed drive allows speeds from
76 to 190 RPM. Speed can be changed when unit is operating.
-
Options:
motor controls.
-
Spare
parts are available.
Motors:
3/4 HP is 115/23OV, 60 cycle, single phase totally enclosed. I HP is 230/46OV,
60 cycle, three phase, totally enclosed. Other motors are available on
special request.

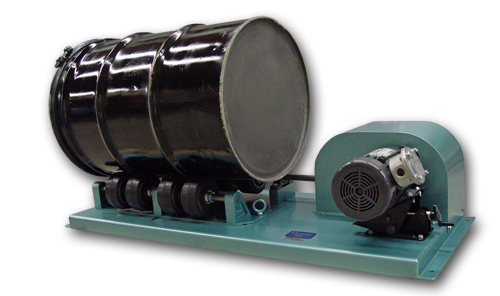

Single Speed Double Drum Roller
|
