Unitized Jar Mills
PRODUCT SPECIFICATIONS
Model 764 | Model 784 | Model 755

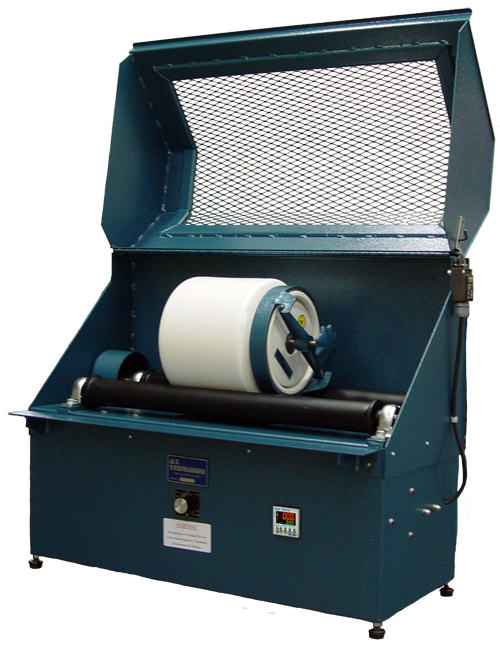

Unitized Jar Mill Model 764




Model 764 - Specifications

  • Totally enclosed DC drive motor permit solid-state control of roll speed. Machines have speed range of between 20 and 300 RPM

  • Motor is 1/4 HP, 60/50 cycle, 115/110V, single phase, furnished with standard plug, 220V available

  • Explosion-proof model has a speed range of 160/320 RPM

  • Options: Explosion-proof motors, revolution counter, timer, start-stop motor controls, roll guard covers

Back to the top

Model 784 - Specifications


784 CV - Six Jar Capacity Mill

  • Totally enclosed DC drive motors permit solid-state control of roll speed. Machines have a speed range of between 20 and 300 RPM

  • Designed with sheet metal pans under each tier of rollers. Pans contain jar contents should spillage or breakage occur

  • Motor are 60/50 cycle, 115/110V, single phase, 220V available

  • Explosion-proof has a speed range of 160-320 RPM

  • Options: Explosion-proof or 230/460V, 3 phase motors, revolution counter, timer, start-stop motor controls, sound proof enclosures

Back to the top

Model 755 - Specifications

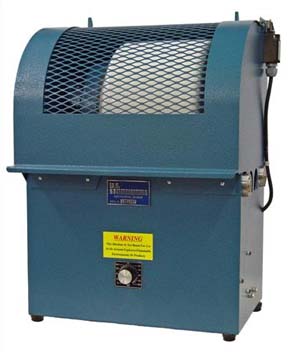

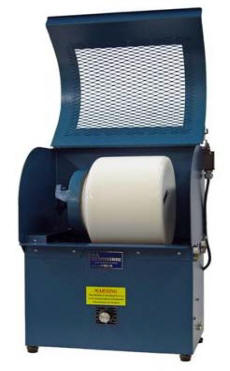

755 RMV  Closed Safety Cover 755 RMV   Open Safety Cover


  • Totally enclosed DC drive motors permit solid-state control of roll speed. Machines have a
    speed range of between 20 and 300 RPM

  • Motor is 1/4HP, single phase TEFC, 60/50 cycle, 115/110V and furnished with standard plug

  • Explosion-proof model has constant a speed of 290 RPM.

  • Options: Roll guard cover

Model No.

 No. Tiers

Roll Length

Length

Width

Height

Motor H.P.

Loading Max Wt Per Tier (lbs.)

Approx. Shipping Wt. (lbs.)

755RMV

1

 13

17-3/4

11-1/4

13-3/4

1/4

60

70

764AVM

1

24

30-1/4

12-3/4

15-3/4

1/4

75

90

784AVM

2

13

20-1/4

12-1/8

34-3/8

1/4

60

130

784VM

3

13

20-1/4

12-1/8

50-1/8

1/3

60

155

784BVM

2

13

40-3/8

12-1/8

34-3/8

1/2

125

205

784CVM

3

13

40-3/8

12-1/8

50-1/8

3/4

145

255

Back to the top
